软管接头
90012双面连接芯

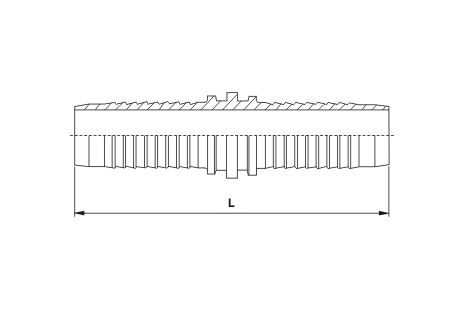

90012 双面连接芯
| 代号 | 软管 | 尺寸 | |
|---|---|---|---|
| 公称内径 | 标号 | L | |
| 90012-04 | 6 | 04 | 83 |
| 90012-05 | 8 | 05 | 87 |
| 90012-06 | 10 | 06 | 87 |
| 90012-08 | 12 | 08 | 91 |
| 90012-10 | 16 | 10 | 97 |
| 90012-12 | 20 | 12 | 110 |
| 90012-16 | 25 | 16 | 134 |
| 90012-20 | 32 | 20 | 153 |
| 90012-24 | 40 | 24 | 172 |
| 90012-32 | 50 | 32 | 178 |
| 注：用于编织软管 | |||
-
