软管接头

2019190°公制内螺纹球面

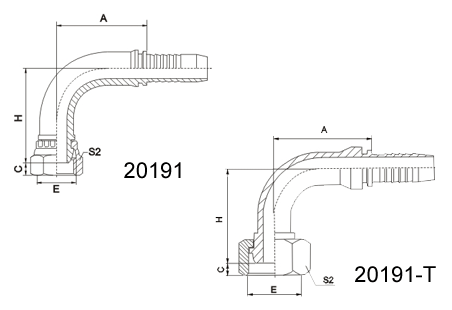

20191 90°公制内螺纹球面

代号  螺纹 E 软管  尺寸
公称内径 标号 A C H S2
20191-10-03 M10X1 5 03 27 2.5 35.5 14
20191-12-04 M12X1.5 6 04 30 4 37.5 17
20191-14-04 M14X1.5 6 04 30 4.5 38 19
20191-14-05 M14X1.5 8 05 33 4.5 41 19
20191-16-04 M16X1.5 6 04 30 4.5 38.5 19
20191-16-05 M16X1.5 8 05 33 4.5 41.5 22
20191-16-06 M16X1.5 10 06 35.3 4.5 43.8 22
20191-18-06 M18X1.5 10 06 35.3 4 45.3 24
20191-18-08 M18X1.5 12 08 40.5 4 50.5 24
20191-20-08 M20X1.5 12 08 41 5.5 52 27
20191-22-08 M22X1.5 12 08 41 5 52.5 27
20191-24-10 M24X1.5 16 10 58 5 58.5 30
20191-30-12D M30X1.5 20 12 67.5 6 68.5 36
20191-30-12 M30X2 20 12 67.5 6 68.5 36
20191-18-05T M18X1.5 8 05 33 4 43 24
20191-20-06T M20X1.5 10 06 35.3 5.5 44.8 24
20191-22-06T M22X1.5 10 06 35.8 5 76.8 27
20191-24-08T M24X1.5 12 08 41 5.5 51 30
20191-27-10DT M27X1.5 16 10 56 5.5 55.5 32
20191-27-10T M27X2 16 10 56 5.5 55.5 32
20191-36-12T M36X2 20 12 65.5 7 68 41
20191-36-14T M36X2 22 14 71.2 7 69 41
20191-39-16T M39X2 25 16 76.7 7 73.5 46
20191-45-20T M45X2 32 20 91.5 8.5 85 55
20191-52-24T M52X2 40 24 109.4 9 100 60
20191-64-32T M64X2 50 32 131.75 14 122.3 75
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 20192-XX-XX
