过渡接头
1C直通接头

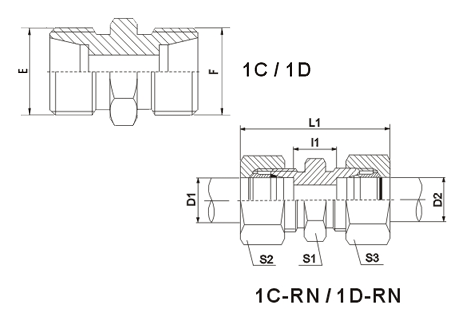

1C 直通接头
| 代号 | 螺纹 | 管子外径 | 尺寸 | 压力等级 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1 | D2 | l1 | L1 | S1 | S2 | S3 | ||
| 1C-12 | M12X1.5 | M12X1.5 | 6 | 6 | 10 | 39 | 12 | 14 | 14 |
31.5 轻系列 |
| 1C-14 | M14X1.5 | M14X1.5 | 8 | 8 | 11 | 40 | 14 | 17 | 17 | |
| 1C-16 | M16X1.5 | M16X1.5 | 10 | 10 | 13 | 42 | 17 | 19 | 19 | |
| 1C-18 | M18X1.5 | M18X1.5 | 12 | 12 | 14 | 43 | 19 | 22 | 22 | |
| 1C-22 | M22X1.5 | M22X1.5 | 15 | 15 | 16 | 46 | 24 | 27 | 27 | |
| 1C-26 | M26X1.5 | M26X1.5 | 18 | 18 | 16 | 48 | 27 | 32 | 32 | |
| 1C-30 | M30X2 | M30X2 | 22 | 22 | 20 | 52 | 32 | 36 | 36 |
16 轻系列 |
| 1C-36 | M36X2 | M36X2 | 28 | 28 | 21 | 54 | 41 | 41 | 41 | |
| 1C-45 | M45X2 | M45X2 | 35 | 35 | 20 | 63 | 46 | 50 | 50 | |
| 1C-52 | M52X2 | M52X2 | 42 | 42 | 21 | 66 | 55 | 60 | 60 | |
| 注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，1C-30RN | ||||||||||
-
