软管接头
8769390° SAE法兰6000PSI

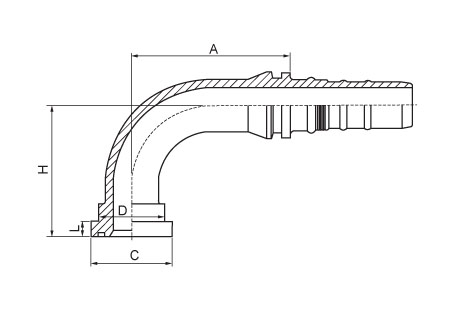

87693 90° SAE法兰6000PSI
| 代号 | 法兰型号 | 软管 | 尺寸 | |||||
|---|---|---|---|---|---|---|---|---|
| 公称内径 | 标号 | A | C | D | H | L | ||
| 87693-12-12 | 3/4" | 20 | 12 | 75 | 41.3 | 32 | 66 | 8.76 |
| 87693-16-12 | 1" | 20 | 12 | 75 | 47.6 | 38 | 68 | 9.53 |
| 87693-16-16 | 1" | 25 | 16 | 88.9 | 47.6 | 38 | 73.5 | 9.53 |
| 87693-20-16 | 1.1/4" | 25 | 16 | 88.9 | 54 | 44 | 78.5 | 10.29 |
| 87693-20-20 | 1.1/4" | 32 | 20 | 105.8 | 54 | 44 | 86.5 | 10.29 |
| 87693-24-20 | 1.1/2" | 32 | 20 | 105..8 | 63.5 | 51 | 89.5 | 12.57 |
| 87693-24-24 | 1.1/2" | 40 | 24 | 124.2 | 63.5 | 51 | 103 | 12.57 |
| 87693-32-24 | 2" | 40 | 24 | 124.2 | 79.4 | 67 | 103 | 12.57 |
| 87693-32-32 | 2" | 50 | 32 | 150.3 | 79.4 | 67 | 123.3 | 12.57 |
