一体式接头
26791-RW美制JIC内螺纹74°内锥面

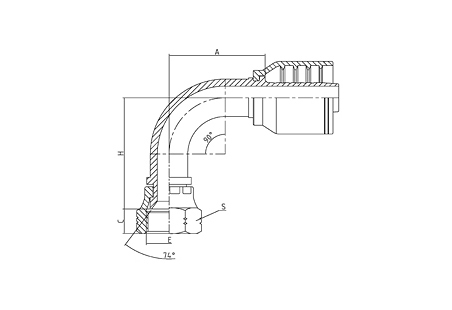

26791-RW 美制JIC内螺纹74°内锥面
| 代号 | E | 胶管 | 尺寸 | ||||
|---|---|---|---|---|---|---|---|
| 螺纹 | 公称内径 | 标号 | A | H | C | S | |
| 26791-04-04RW | 7/16"X20 | 6 | 04 | 30 | 30 | 9 | 15 |
| 26791-05-05RW | 1/2"X20 | 8 | 05 | 33 | 33 | 9.5 | 17 |
| 26791-06-05RW | 9/16"X18 | 8 | 05 | 33 | 33 | 10.5 | 19 |
| 26791-06-06RW | 9/16"X18 | 10 | 06 | 36.5 | 38.5 | 10.5 | 19 |
| 26791-08-06RW | 3/4"X16 | 10 | 06 | 36.5 | 41 | 11 | 24 |
| 26791-08-08RW | 3/4"X16 | 13 | 08 | 43.5 | 46.5 | 11 | 24 |
| 26791-10-10RW | 7/8"X14 | 16 | 10 | 55 | 51.5 | 13 | 27 |
| 26791-12-10RW | 1.1/16"X12 | 16 | 10 | 55 | 54 | 15 | 32 |
| 26791-12-12RW | 1.1/16"X12 | 19 | 12 | 64 | 62.5 | 15 | 32 |
| 26791-14-12RW | 1.3/16"X12 | 19 | 12 | 64 | 63.5 | 15 | 36 |
| 26791-16-16RW | 1.5/16"X12 | 25 | 16 | 74 | 72 | 16 | 41 |
| 26791-20-20RW | 1.5/8"X12 | 32 | 20 | 91.5 | 84 | 17 | 50 |
| 26791-24-24RW | 1.7/8"X12 | 38 | 24 | 109 | 100 | 20 | 55 |
| 26791-32-32RW | 2.1/2"X12 | 51 | 32 | 129 | 121.5 | 23.5 | 75 |
| 注：1表中代号用于编织软管。2、如需用于缠绕软管代号改为 S26792-XX-XXRW. | |||||||
