软管接头
16711-PO美制JIC外螺纹74° 外锥面

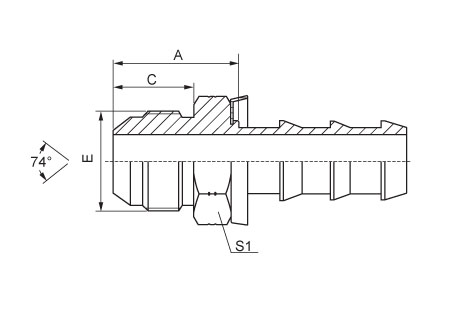

16711-PO 美制JIC外螺纹74° 外锥面
| 代号 | 螺纹 E | 软管 | 尺寸 | |||
|---|---|---|---|---|---|---|
| 公称内径 | 标号 | A | C | S1 | ||
| 16711-04-04PO | 7/16"X20 | 6 | 04 | 22 | 14 | 12 |
| 16711-06-04PO | 9/16"X18 | 6 | 04 | 22 | 14.1 | 17 |
| 16711-06-06PO | 9/16"X18 | 10 | 06 | 22 | 14.1 | 17 |
| 16711-08-06PO | 3/4"X16 | 10 | 06 | 27.2 | 16.7 | 22 |
| 16711-08-08PO | 3/4"X16 | 12 | 08 | 27.2 | 16.7 | 22 |
| 16711-10-10PO | 7/8"X14 | 16 | 10 | 30 | 19.3 | 24 |
| 16711-10-12PO | 7/8"X14 | 20 | 12 | 29.4 | 19.3 | 24 |
| 16711-12-08PO | 1.1/16’X12 | 12 | 08 | 34.5 | 21.9 | 27 |
| 16711-12-10PO | 1.1/16"X12 | 16 | 10 | 34 | 21.9 | 27 |
| 16711-12-12PO | 1.1/16"X12 | 20 | 12 | 33.4 | 21.9 | 27 |
