软管接头
27811-PO美制SAE内螺纹90° 内锥面

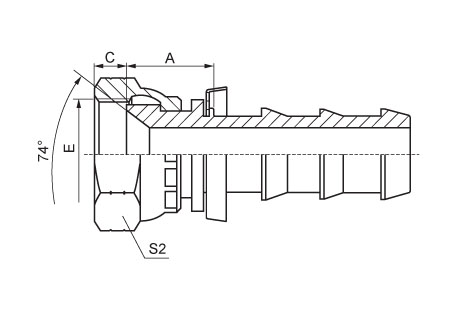

27811-PO 美制SAE内螺纹90° 内锥面
| 代号 | 螺纹 E | 软管 | 尺寸 | |||
|---|---|---|---|---|---|---|
| 公称内径 | 标号 | A | C | S2 | ||
| 27811-04-04PO | 7/16"X20 | 6 | 04 | 12.2 | 9 | 15 |
| 27811-05-04PO | 1/2"X20 | 6 | 04 | 13.7 | 9.5 | 17 |
| 27811-06-04PO | 5/8"X18 | 6 | 04 | 13.7 | 11.3 | 22 |
| 27811-06-06PO | 5/8"X18 | 10 | 06 | 13.7 | 11.3 | 22 |
| 27811-08-06PO | 3/4"X16 | 10 | 06 | 14.7 | 11 | 24 |
| 27811-08-08PO | 3/4"X16 | 12 | 08 | 14.7 | 11 | 24 |
| 27811-10-08PO | 7/8"X14 | 12 | 08 | 15.2 | 13 | 27 |
| 27811-12-12PO | 1.1/16"X14 | 20 | 12 | 16.9 | 14.3 | 32 |
