软管接头

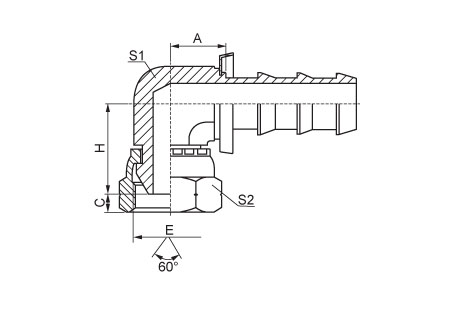

26791K-PO90° 美制JIC内螺纹74° 内锥面
26791K-PO 90° 美制JIC内螺纹74° 内锥面
| 代号 | 螺纹 E | 软管 | 尺寸 | |||||
|---|---|---|---|---|---|---|---|---|
| 公称内径 | 标号 | A | C | H | S1 | S2 | ||
| 26791K-04-04PO | 7/16"X20 | 6 | 04 | 11.7 | 9 | 18 | 11 | 17 |
| 26791K-06-04PO | 9/16"X18 | 6 | 04 | 14 | 10.5 | 20.5 | 14 | 19 |
| 26791K-06-06PO | 9/16"X18 | 10 | 06 | 15.5 | 10.5 | 21 | 16 | 19 |
| 26791K-08-06PO | 3/4"X16 | 10 | 06 | 16 | 11 | 22.5 | 16 | 24 |
| 26791K-08-08PO | 3/4"X16 | 12 | 08 | 15.7 | 11 | 22.5 | 19 | 24 |
| 26791K-10-10PO | 7/8"X14 | 16 | 10 | 18.5 | 12 | 27.5 | 22 | 27 |
| 26791K-12-12PO | 1.1/16"X12 | 20 | 12 | 21.5 | 15 | 30 | 27 | 32 |
