22111BSP FEMALE MULTISEAL

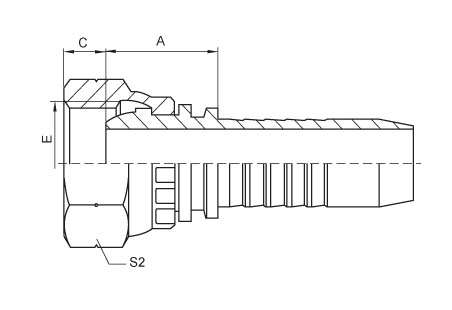

22111 BSP FEMALE MULTISEAL

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S1
22111-02-04 G1/8"X28 6 04 19 2 14
22111-04-03 G1/4"X19 5 03 19 4 19
22111-04-04 G1/4"X19 6 04 19.5 4 19
22111-06-05 G3/8"X19 8 05 20 5 22
22111-06-06 G3/8"X19 10 06 20.5 5 22
22111-06-08 G3/8"X19 12 08 21 5 22
22111-08-08 G1/2"X14 12 08 23 6 27
22111-08-10 G1/2"X14 16 10 24 6 27
22111-10-10 G5/8"X14 16 10 25 8 30
22111-10-12 G5/8"X14 20 12 25 8 30
22111-12-10 G3/4"X14 16 10 26 9.5 32
22111-12-12 G3/4"X14 20 12 26 9.5 32
22111-16-14 G1"X11 22 14 26.5 11 41
22111-16-16 G1"X11 25 16 28 11 41
22111-08-06T G1/2"X14 10 06 22.5 6 27
22111-12-08T G3/4"X14 12 08 25 9.5 32
22111-16-12T G1"X11 20 12 26.5 11 41
22111-20-16T G1.1/4"X11 25 16 27.5 11 50
22111-20-20W G1.1/4"X11 32 20 31.5 10 50
22111-24-24W G1.1/2"X11 40 24 37 11.5 55
22111-32-32W G2"X11 50 32 34 15 70
Note: 1.For ues with braided hoses.      2.If use with spiral hoses,hose fitting series number is 22112-XX-XX.
