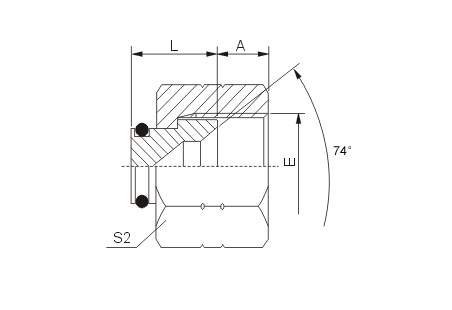

9J美制JIC内螺纹74° 内锥堵头
9J 美制JIC内螺纹74° 内锥堵头
| 代号 | 螺纹 | 尺寸 | ||
|---|---|---|---|---|
| E | A | L | S1 | |
| 9J-04 | 7/16"X20 | 9 | 10.5 | 15 |
| 9J-05 | 1/2"X20 | 9.5 | 11 | 17 |
| 9J-06 | 9/16"X18 | 10.5 | 11 | 19 |
| 9J-08 | 3/4"X16 | 11 | 13 | 24 |
| 9J-10 | 7/8"X14 | 13 | 13.5 | 27 |
| 9J-12 | 1.1/16"X12 | 15 | 15 | 32 |
| 9J-14 | 1.3/16"X12 | 15 | 15 | 36 |
| 9J-16 | 1.5/16"X12 | 16 | 15.5 | 41 |
| 9J-20 | 1.5/8"X12 | 17 | 18.5 | 50 |
| 9J-24 | 1.7/8"X12 | 20 | 19 | 55 |
| 9J-32 | 2.1/2"X12 | 23.5 | 20.5 | 75 |
