过渡接头

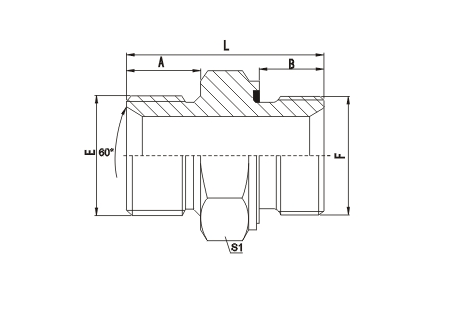

1B-WD英管外螺纹60° 内锥或六角端面用组合垫密封 / 英管外螺纹胶垫密封
1B-WD 英管外螺纹60° 内锥或六角端面用组合垫密封 / 英管外螺纹胶垫密封
| 代号 | 螺纹 | 胶垫 | 尺寸 | ||||
|---|---|---|---|---|---|---|---|
| E | F | F | A | B | L | S1 | |
| 1B-04WD | G1/4"X19 | G1/4"X19 | WD-B04 | 12 | 12 | 32 | 19 |
| 1B-04-06WD | G1/4"X19 | G3/8"X19 | WD-B06 | 12 | 12 | 34.5 | 22 |
| 1B-04-08WD | G1/4"X19 | G1/2"X14 | WD-B08 | 12 | 14 | 39 | 27 |
| 1B-06WD | G3/8"X19 | G3/8"X19 | WD-B06 | 13.5 | 12 | 34 | 22 |
| 1B-06-08WD | G3/8"X19 | G1/2"X14 | WD-B08 | 132.4 | 14 | 40.5 | 27 |
| 1B-08WD | G1/2"X14 | G1/2"X14 | WD-B08 | 16 | 14 | 43 | 27 |
| 1B-08-12WD | G1/2"X14 | G3/4"X14 | WD-B12 | 16 | 16 | 46 | 32 |
| 1B-12WD | G3/4"X14 | G3/4"X14 | WD-B12 | 18.5 | 16 | 46.5 | 32 |
| 1B-12-16WD | G3/4"X14 | G1"X11 | WD-B16 | 18.5 | 18 | 52.5 | 41 |
| 1B-16WD | G1"X11 | G1"X11 | WD-B16 | 20.5 | 18 | 54.5 | 41 |
| 1B-16-20WD | G1"X11 | G1.1/4"X11 | WD-B20 | 20.5 | 20 | 58.5 | 50 |
| 1B-20WD | G1.1/4"X11 | G1.1/4"X11 | WD-B20 | 20.5 | 20 | 58.5 | 50 |
