过渡接头

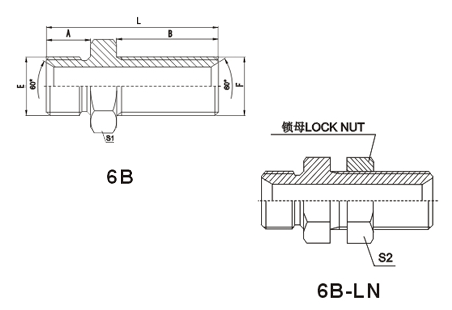

6B英管外螺纹60° 内锥过板接头
6B 英管外螺纹60° 内锥过板接头
| 代号 | 螺纹 | 尺寸 | |||||
|---|---|---|---|---|---|---|---|
| E | F | A | B | L | S1 | S2 | |
| 6B-02 | G1/8"X28 | G1/8"X28 | 10 | 33 | 49 | 14 | 14 |
| 6B-04 | G1/4"X19 | G1/4"X19 | 12 | 35 | 53 | 19 | 19 |
| 6B-06 | G3/8"X19 | G3/8"X19 | 13.5 | 35 | 56.5 | 22 | 22 |
| 6B-08 | G1/2"X14 | G1/2"X14 | 16 | 39 | 65 | 27 | 27 |
| 6B-10 | G5/8"X14 | G5/8"X14 | 17.5 | 40 | 67.5 | 30 | 30 |
| 6B-12 | G3/4"X14 | G3/4"X14 | 18.5 | 42 | 71.5 | 32 | 32 |
| 6B-16 | G1"X11 | G1"X11 | 20.5 | 50 | 84 | 41 | 41 |
| 6B-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 52 | 89.5 | 50 | 50 |
| 6B-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 55 | 93 | 55 | 55 |
| 6B-32 | G2"X11 | G2"X11 | 25.5 | 55 | 97.5 | 70 | 70 |
| 注：如需带锁母整套订货，则请在代号后加“LN”，如6B-16LN，锁母代号为8B。 | |||||||
