软管接头

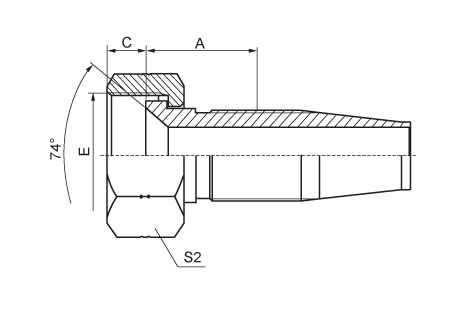

26718-R5T美制JIC 内螺纹74° 内锥面
26718-R5T 美制JIC 内螺纹74° 内锥面
| 代号 | 螺纹 E | 软管标号 | 尺寸 | ||
|---|---|---|---|---|---|
| A | C | S2 | |||
| 26718-04-04(R5T) | 7/16"X20 | 04 | 20.5 | 9 | 15 |
| 26718-05-05(R5T) | 1/2"X20 | 05 |
23.4 |
9.5 | 17 |
| 26718-06-06(R5T) | 9/16"X18 | 06 | 22.5 | 10.5 | 19 |
| 26718-08-08(R5T) | 3/4"X16 | 08 | 23.5 | 11 | 24 |
| 26718-10-10(R5T) | 7/8"X14 | 10 | 24 | 13 | 27 |
| 26718-12-12(R5T) | 1.1/16"X12 | 12 | 26 | 15 | 32 |
| 26718-16-16(R5T) | 1.5/16"X12 | 16 | 22.5 | 16 | 41 |
| 26718-20-20(R5T) | 1.5/8"X12 | 20 | 24 | 17 | 50 |
| 26718-24-24(R5T) | 1.7/8"X12 | 24 | 24 | 20 | 55 |
| 26718-32-32(R5T) | 2.1/2"X12 | 32 | 26 | 23.5 | 75 |
