87313SAE FLANGE 6000 PSI ISO 12151-3---SAE J516
87313 SAE FLANGE 6000 PSI ISO 12151-3---SAE J516

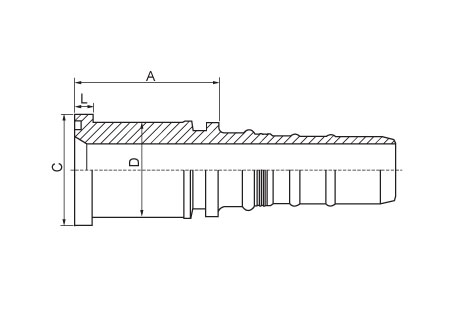

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | D | L | ||
| 87313-12-12 | 3/4" | 20 | 12 | 50 | 38.1 | 31.7 | 6.73 |
| 87313-16-12 | 1" | 20 | 12 | 54 | 44.4 | 38 | 8 |
| 87313-16-16 | 1" | 25 | 16 | 54.4 | 44.4 | 38 | 8 |
| 87313-20-16 | 1.1/4" | 25 | 16 | 59.4 | 50.8 | 43 | 8 |
| 87313-20-20 | 1.1/4" | 32 | 20 | 65.8 | 50.8 | 43 | 8 |
| 87313-24-20 | 1.1/2" | 32 | 20 | 71.8 | 60.3 | 50 | 8 |
| 87313-24-24 | 1.1/2" | 40 | 24 | 72.2 | 60.3 | 50 | 8 |
| 87313-32-24 | 2" | 40 | 24 | 74.2 | 71.4 | 62 | 9.53 |
| 87313-32-32 | 2" | 50 | 32 | 78.5 | 71.4 | 62 | 9.53 |
