软管接头

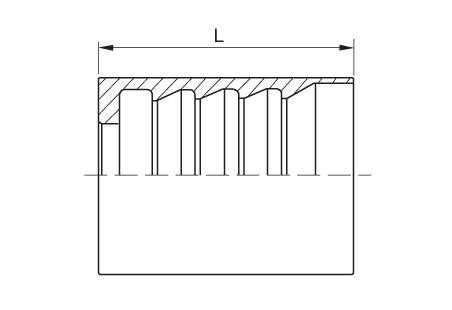

00210SAE 100R2AT/DIN 20022 2SN软管套筒
00210 SAE 100R2AT/DIN 20022 2SN软管套筒
| 代号 | 软管 | 尺寸 | |
|---|---|---|---|
| 公称内径 | 标号 | L | |
| 00210-03 | 5 | 03 | 27 |
| 00210-04 | 6 | 04 | 30 |
| 00210-05 | 8 | 05 | 31 |
| 00210-06 | 10 | 06 | 32 |
| 00210-08 | 12 | 08 | 34 |
| 00210-10 | 16 | 10 | 37 |
| 00210-12 | 20 | 12 | 43 |
| 00210-16 | 25 | 16 | 50 |
| 00210-20 | 32 | 20 | 59 |
| 00210-24 | 40 | 24 | 74 |
| 00210-32 | 50 | 32 | 78 |
